Product description

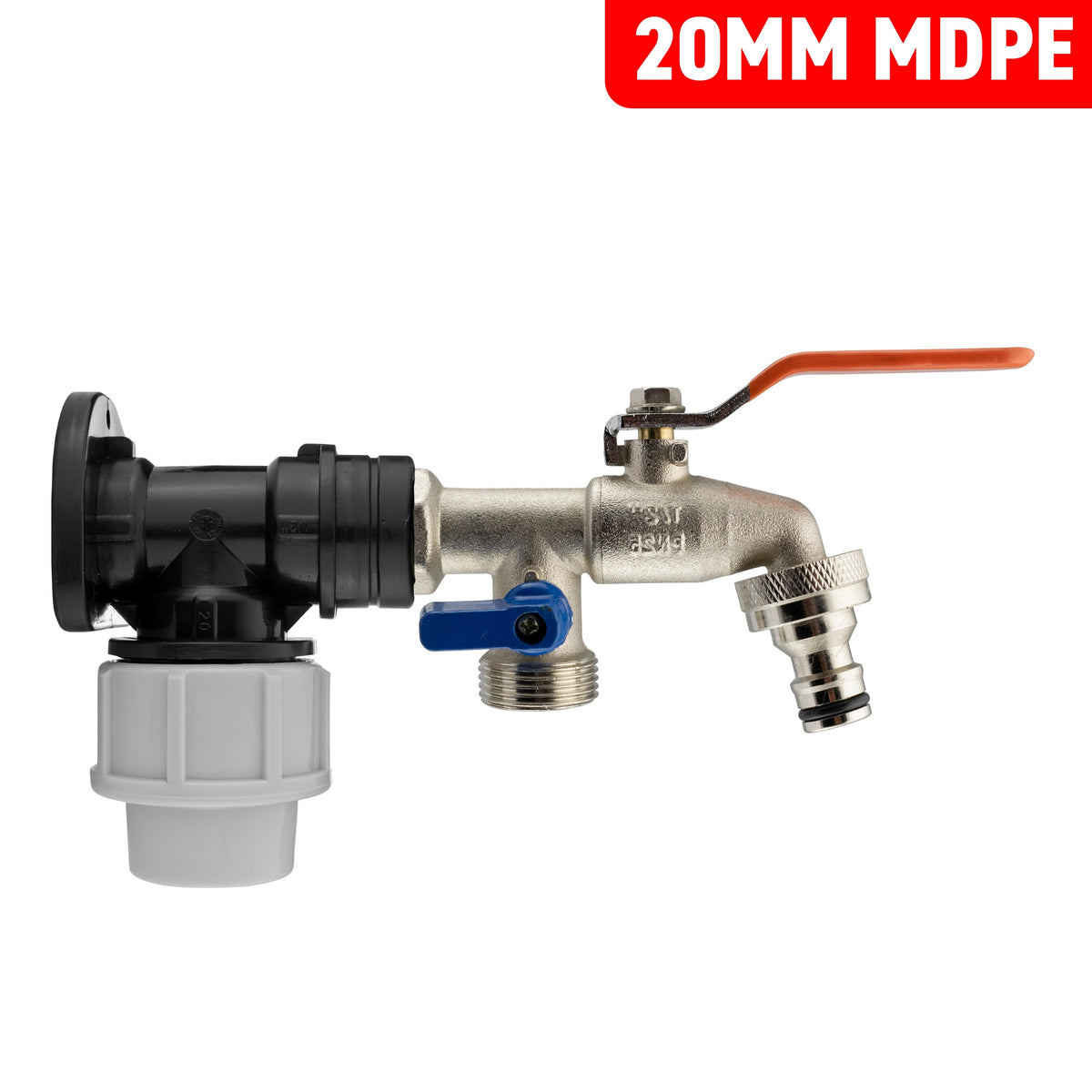

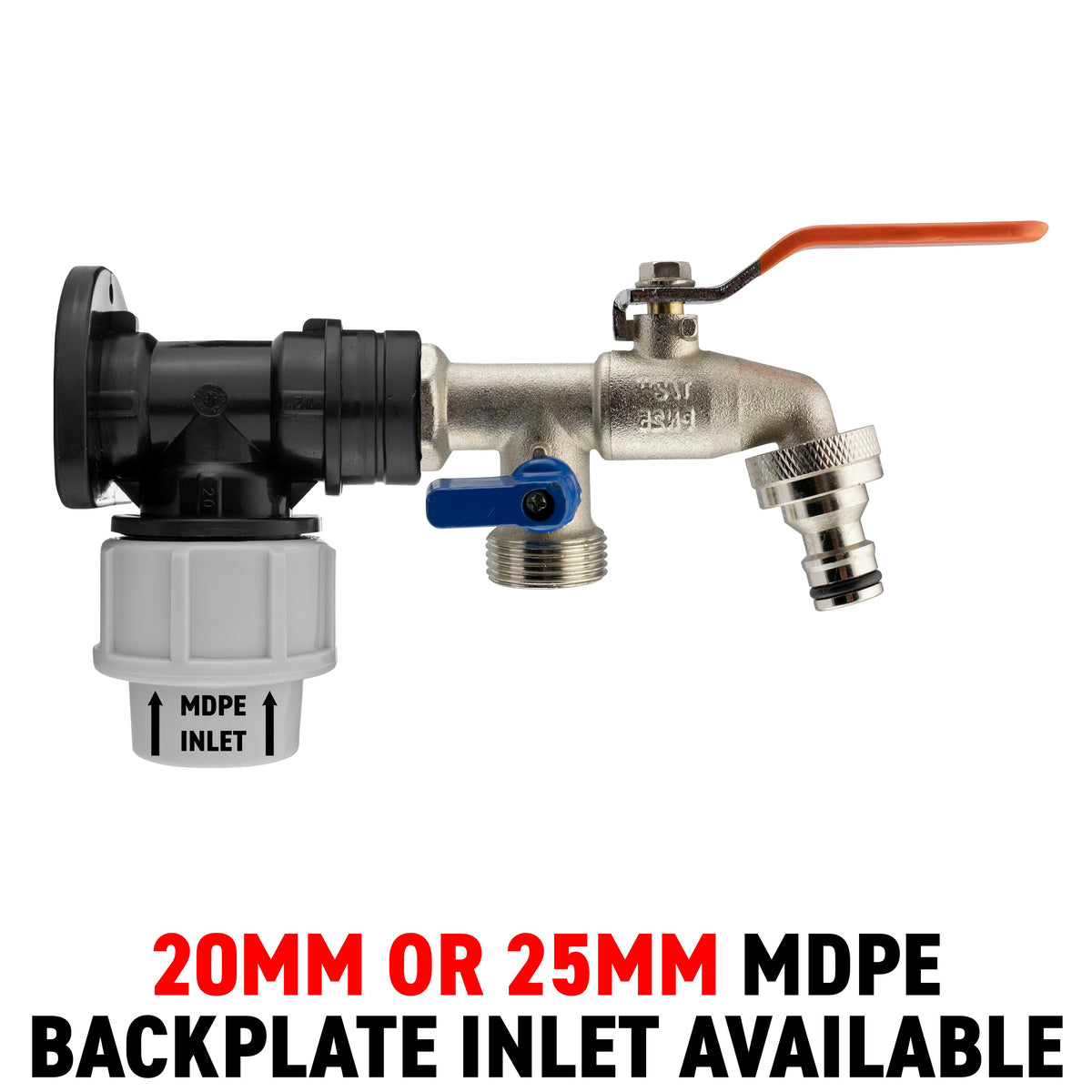

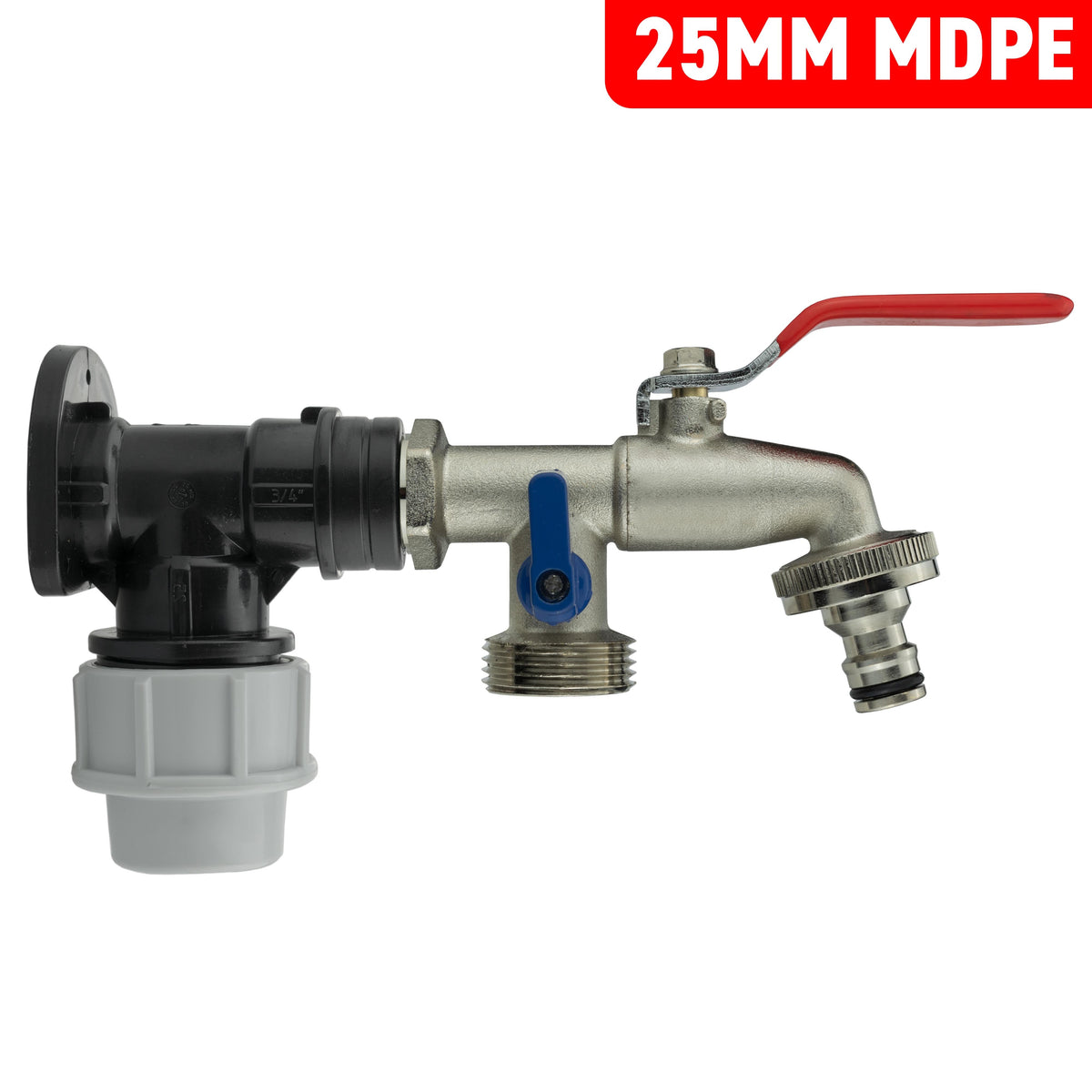

This flange kit pairs your choice of 20 mm or 25 mm flange compression fitting with a double-outlet brass lever tap, providing two independently controlled water points from a single supply. The main lever operates the horizontal outlet, while a smaller integral valve controls the downward-facing secondary outlet, which features a BSP male thread for attaching gauges, fittings or custom hose assemblies. Precision-moulded from high-density polyethylene and PN10-rated (up to 10 bar / 145 psi), the integrated flange plate includes pre-drilled holes for neat, secure mounting to walls or panels. Simply screw the flange into place, push your MDPE pipe into the compression inlet and hand-tighten the collar to engage the O-ring seal, then screw on the brass lever tap assembly—no specialist tools required.
- Flange Sizes: 20 mm inlet with 1/2" BSPF tap; 25 mm inlet with 3/4" BSPF tap
- Main Outlet: Controlled by full-sized brass lever for high-flow on/off operation
- Secondary Outlet: Downward-facing valve with BSP male thread for versatile attachments
- Material: High-density PE flange offers exceptional UV, chemical and impact resistance
- Pressure Rating: PN10 certified to 10 bar / 145 psi
- Installation: Fully tool-free—push-fit inlet, hand-tighten collar and screw-on tap assembly
Specifications
| Brand | COMERCECORE |
|---|---|
| Product type | MDPE Wall Plate Tap Kit |
| MDPE Size | 20mm, 25mm |
